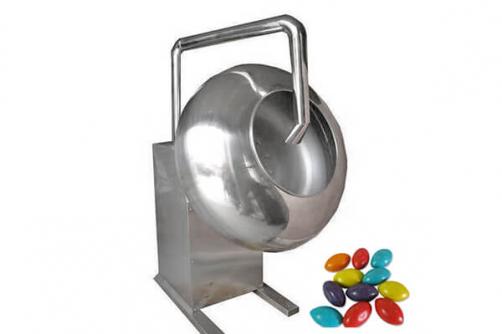

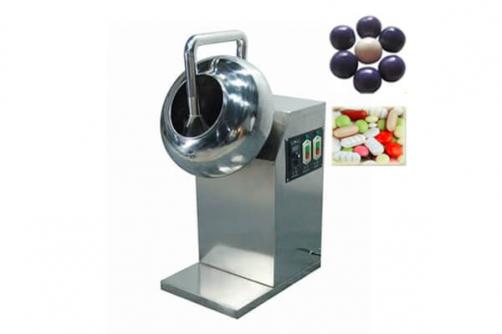

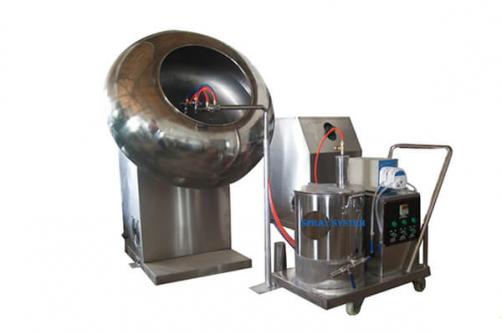

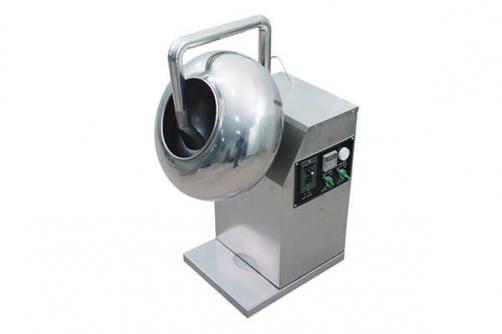

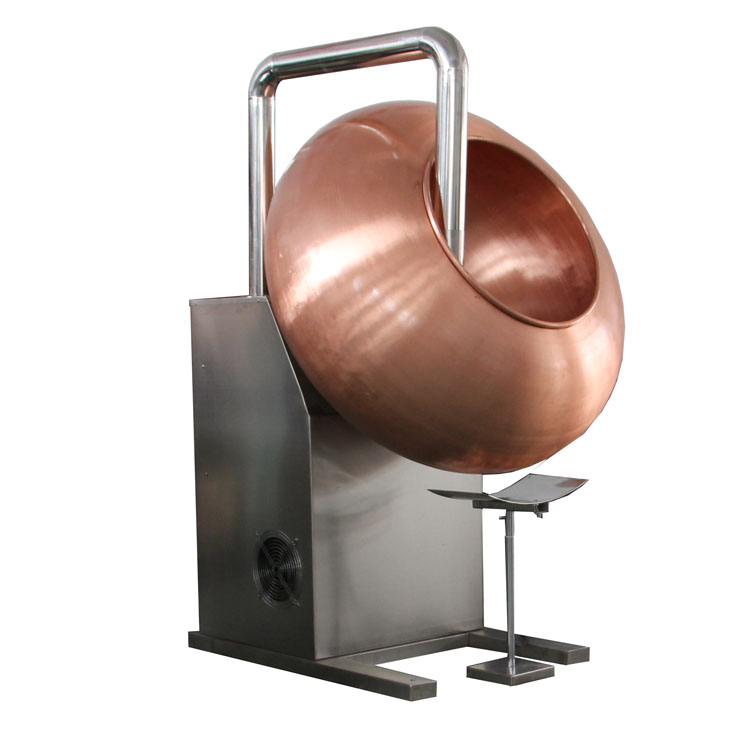

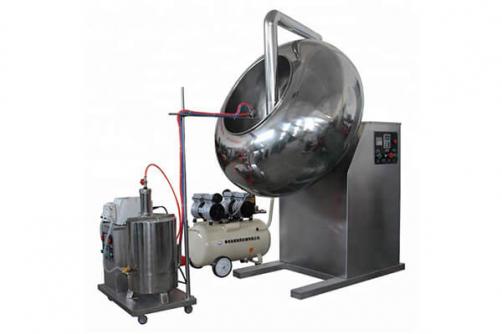

Sugar coating machine
Coating machine is designed for the coating of pills,medecine,nuts, dried fruits, cakes and other products by sugar, chocolate, vitamins and fruit shell.
2.Infinitely variable speed control software and coating drum provide high performance, ease of management, ease of use.

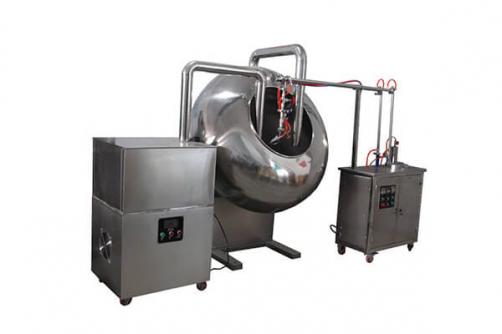

3.Nuts sugar Coating drums are equipped with a special system of blowing hot air.
4.The drums have a reliable and sealed lubrication system. Drum is made of stainless steel, the body is painted with white enamel. The drum is equipped with rubber pads which protect against vibration. Comfortable and easy to maintain and operate.
5. Automatic discharging type is available.
Coating Machine Parameter:
|

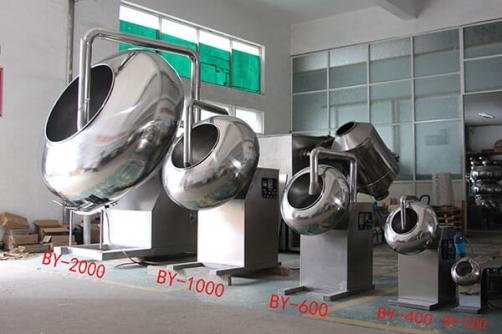

TYPE |
BY-400 |
BY-600 |
BY-800 |
BY-1000 |
BY-1250 |
BY-1500 |
| Pan diameter（mm） |
400 |
600 |
800 |
1000 |
1250 |
1500 |
| Speed（r/min） |
0-60 |
0-46 |
0-32 |
0-32 |
0-32 |
1-26 |
| Main motor power(KW) |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
5.5 |
| Blower power（W） |
40 |
60 |
100 |
100 |
200 |
370 |
| Heating wire power（KW） |
1 |
1 |
1 |
1.5 |
3 |
9.6 |
| Capacity（kg/batch） |
3-5 |
10-25 |
30-50 |
50-70 |
70-150 |
100-350 |
| Machine dimension（mm） |
520×550×850 |
700x600x1100 |
925x900x1400 |
1180×1000×1650 |
1200×1250×1630 |
1700*1500*1950 |
| Machine weight（kg） |
80 |
85 |
205 |
230 |
400 |
600 |
