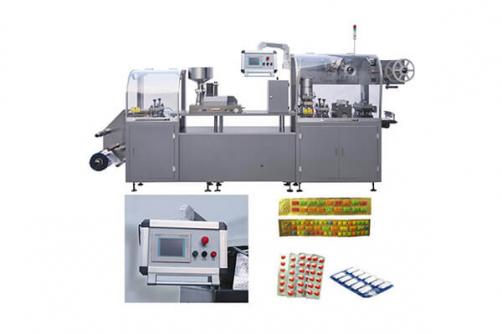

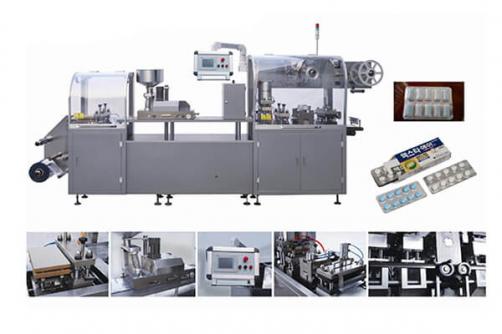

Blister packing machine
Blister packing machine is improved on the base of old machine and importing foreign advance equipment. It belongs to the national advanced level. This machine adopts PLC screen system, variable frequency, advanced function, easy operation, high quality, so it is the best equipment for the industries such as big and mini pharmacy, and food.
Main technical parameters:
| Power of feeder | 1.5kw |
| Punch frequency | 30 – 80 times/min |
| Packing efficiency | 7,200 – 12,000 blisters/h |
| Max. forming area and depth | 275 x 120 x 20mm |
| Adjustable range of stroke | 30 – 120mm |
| Air compressor | ≥0.22m3/min (self -prepared) |
| Power | 5.7kW, AC 380V |
| Rated frequency | 50Hz |
| Dimensions | 3,800 x 800 x 1,800mm |
| Weight | 1,750kg |
Description of the machine
PVC-blister packing machine(PLC)
Include one set of mold and two automatic feeder for packing 2 color material
Packaging & Delivery
Delivery time: 45 days after receive buyer’s down payment.
Packing : with sea worth wooden case.
Delivery time: 45 days after receive buyer’s down payment.
Packing : with sea worth wooden case.
