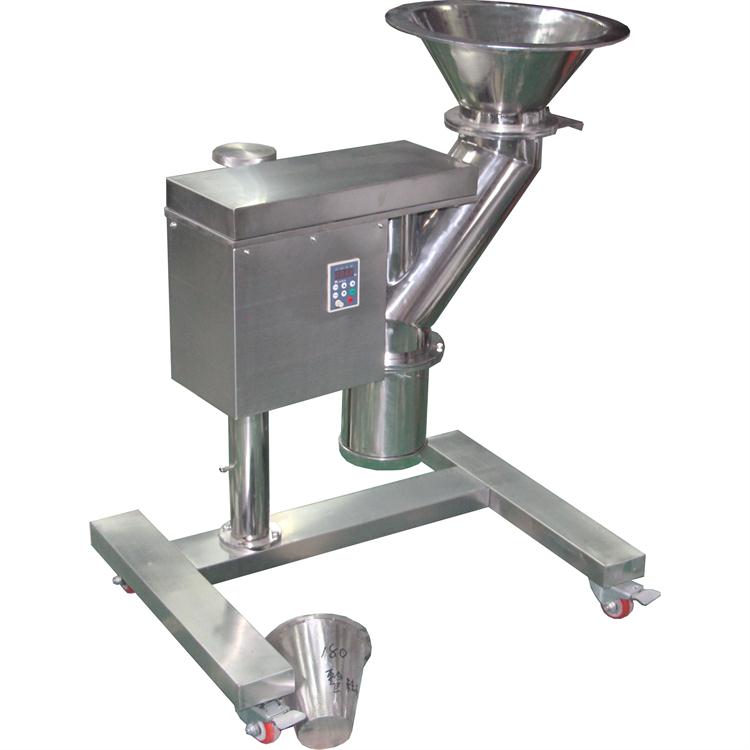

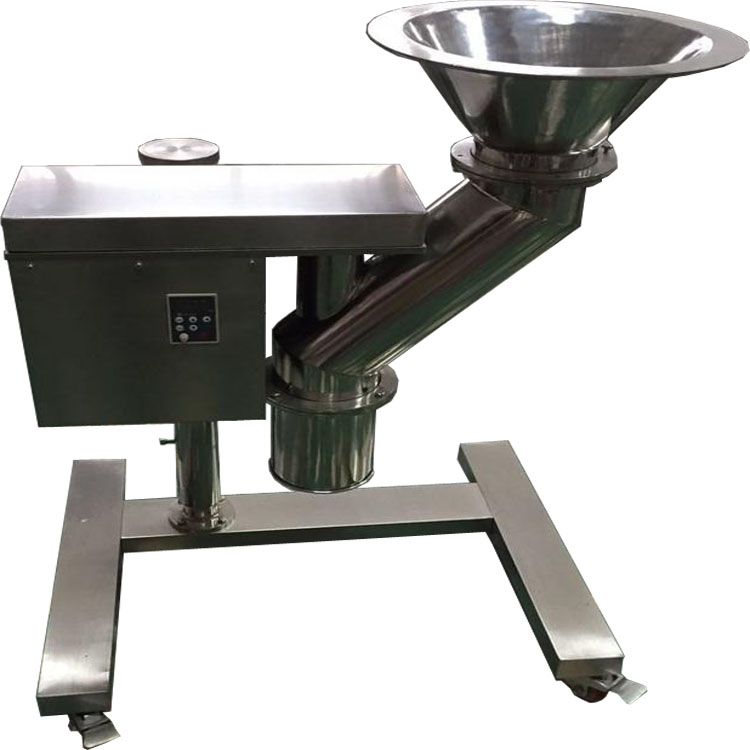

Fast Powder Granulate Machine
1.Application：

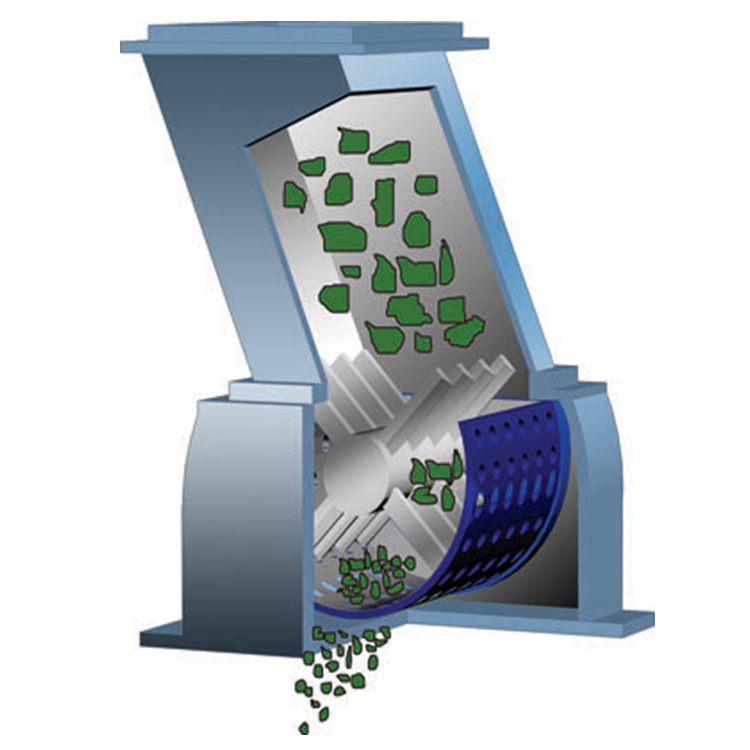

This machine is suitable for crushing and finishing particles in Chinese and Western medicine, food, chemical pigments and feed industries. The particles with different shapes and specifications obtained by various granulation equipment are cut by the high speed rotating blade of the machine, and the particles with the same shape and specification can be obtained by the discharge of the steel plate.
2. Specification
|
Type |
KZL-80 |
KZL-100 |
KZL-120 |
KZL-160 |
KZL-180 |
|
Screen diameter（mm） |
80 |
100 |
120 |
160 |
180 |
|
mesh size （mm） |
1/8 |
1/8 |
1/8 |
1/8 |
1/8 |
|
Capacity（kg/h) |
50-100 |
50-200 |
100-300 |
150-300 |
200-400 |
|
Power（kw） |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
|
Main speed（r/min） |
frequency control |
frequency control |
frequency control |
frequency control |
frequency control |
|
dimension（mm） |
630*430*980 |
630*430*980 |
760*600*1000 |
850X650X1180 |
850*650*1180 |
|
Weight（kg） |
90 |
105 |
110 |
120 |
120 |
|
Voltage（v） |
220 |
380 |
380 |
380 |
380 |
